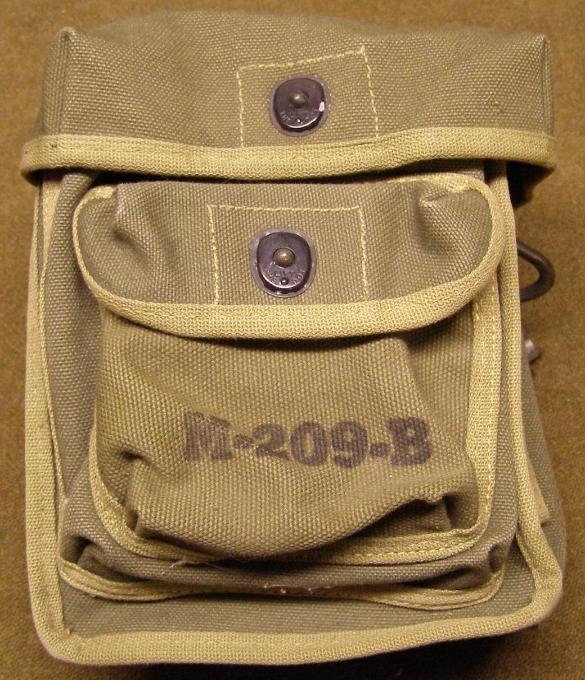

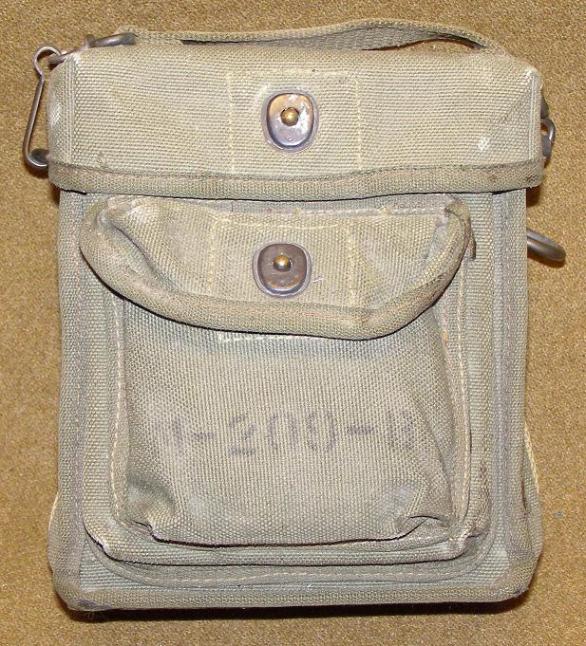

M-209 Cipher Machine Carry and Storage Bags, above photos.
The bag pictured on the left is marked for the M-209-B Cipher Machine and is constructed from olive green canvas with
khaki canvas edging. The front is marked M-209-B in black ink..
The bag pictured on the right is for the M-209-B Cipher Machine and is constructed from olive green canvas. This bag has
very late war style M-209-B stenciled on the front in black.
Type: 1/4 Ton 4x4 Truck
Government Number: G503
Model: MB
Manufacturer: Willys Overland
Date of Delivery: 1943
Serial Number: 277074
Hood Number: Not Available
PENDING RESTORATION

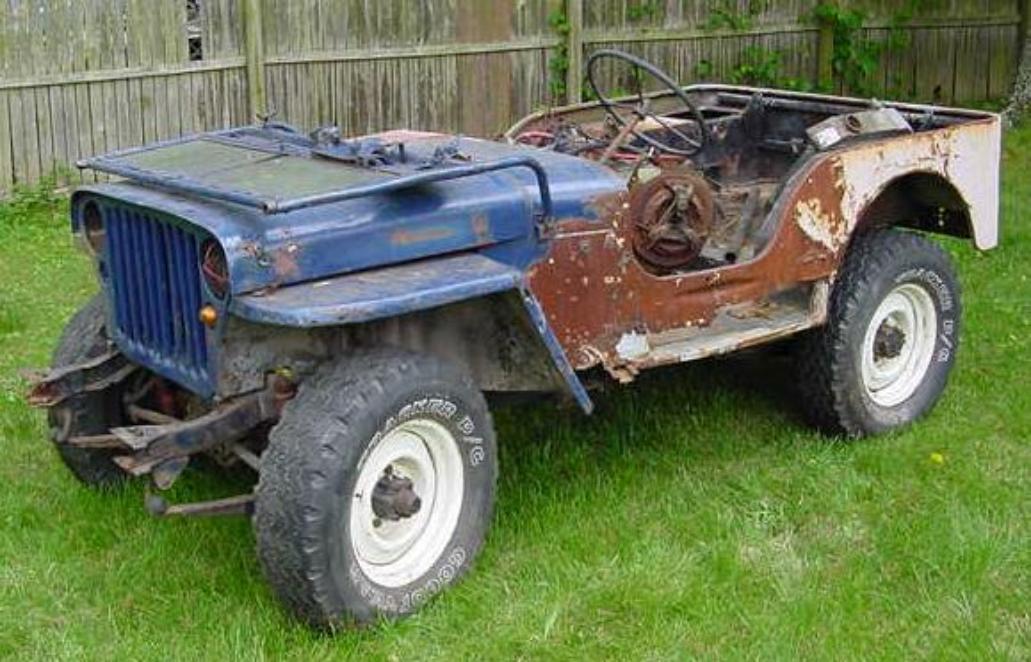

Drivers side of the 1943 MB 277074, above photo.
The original data plates on the glove box are missing as well as the frame data plate. The original body
number is present.

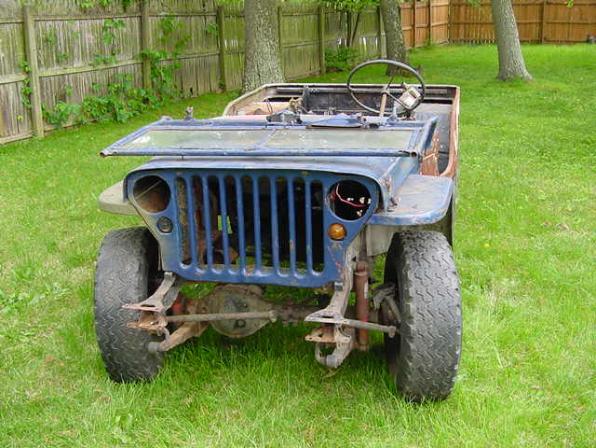

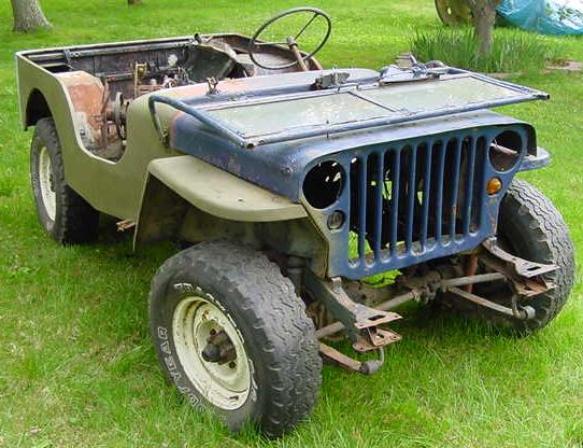

Front and passenger side of the 1943 MB, above two photos.
The front bumper is missing as well as the head lights, marker lights, black out driving light, and all of the engine
components. The original T-84 transmission is present.

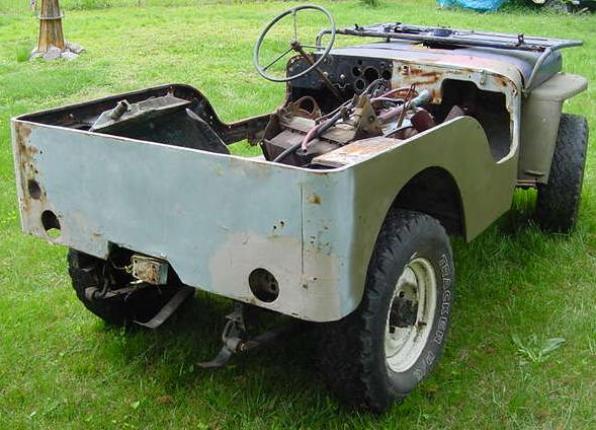

Rear view of the 1943 MB, left photo.
Both bumperettes, the trailer pintle hook, spare tire carrier,
trailer socket and gas can carrier are missing from the rear.
All of the handles, tail lights and reflectors are also missing.
The engine sitting inside of the body tub is from a post-war
Willys CJ.

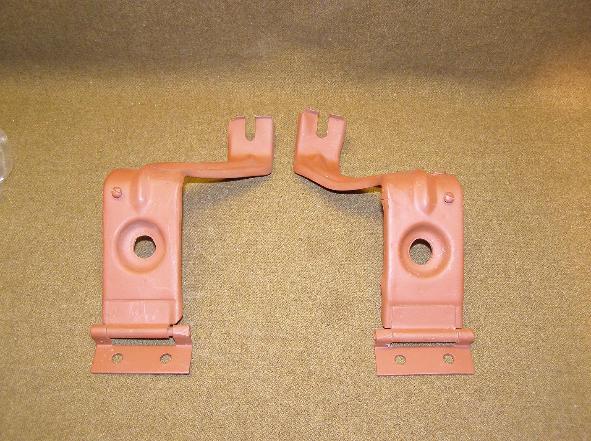

Headlight brackets, above left photo.

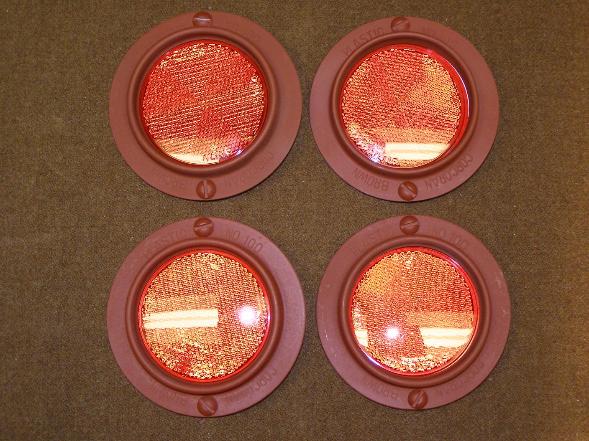

Reflectors, above right photo.
These reflectors are marked CORCORAN BROWN PLASTIC NO.100

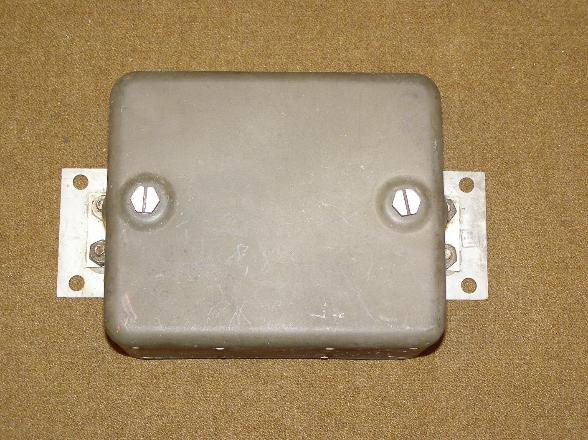

Radio Filterette, above left photo.

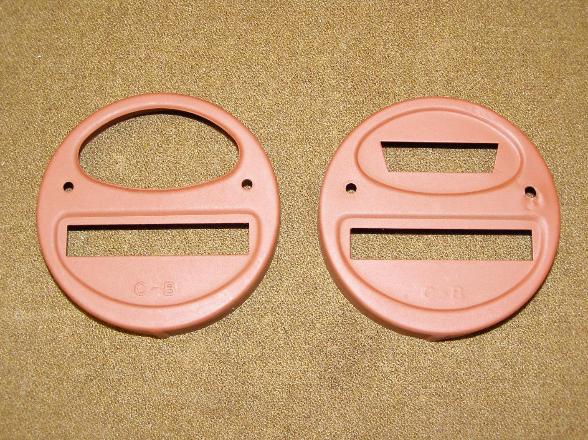

Driver and passenger side Tail Light covers, above right photo.
The face of these covers are marked C-B for Corcoran Brown.

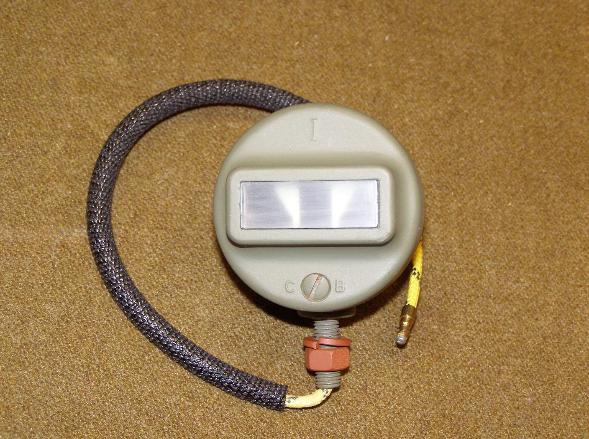

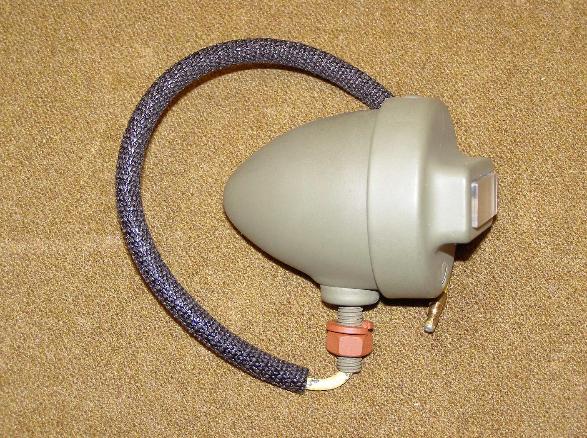

Marker light, above left and right photo.
This light is for the drivers side of the grill. It is marked C B for Corcoran Brown.

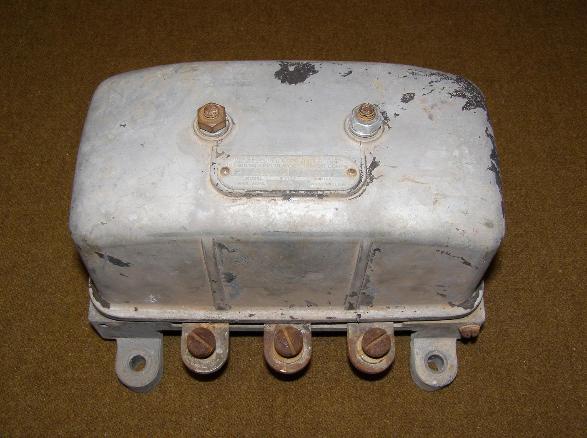

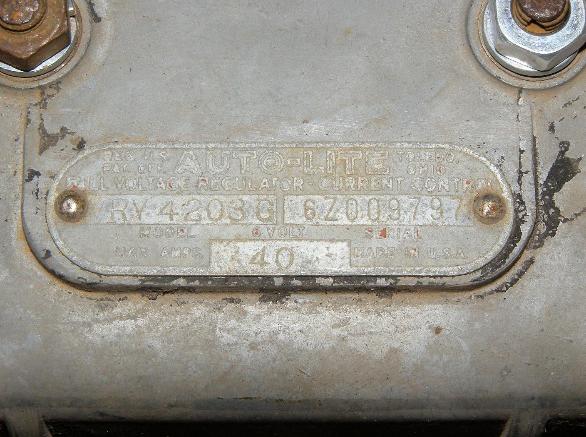

Autolite VRY4203G Voltage Regulator, above left and right photo.
This voltage style of regulator was introduced in 1945. This example is dated June 1945 (6: June Z: 1945 in the serial
number).
This regulator will be used in this restoration as a wartime motor pool replacement.

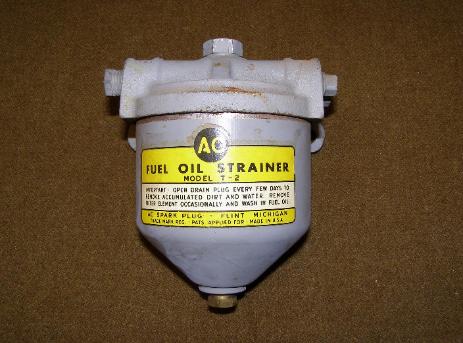

AC Fuel Strainer, left photo.

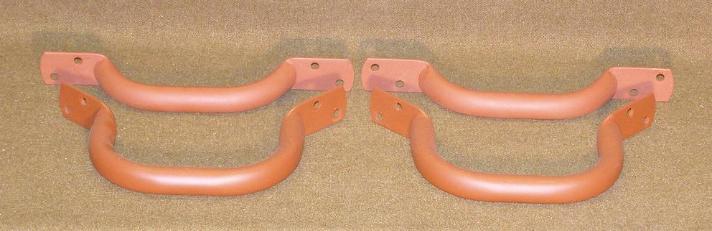

Side and Corner Handles, above photo.

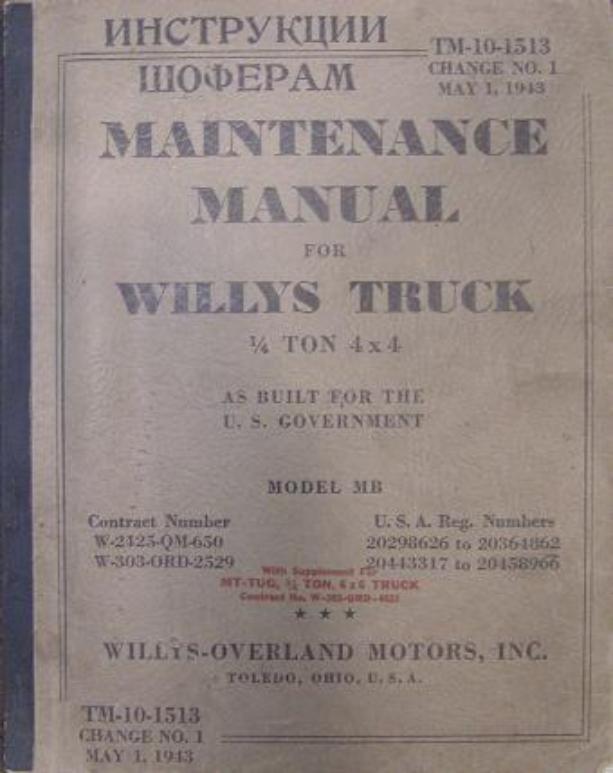

This is the original TM-10-1513 Maintenance Manual that
would have been issued with MB 241969. It is dated:
Change No. 1
May 1, 1943.
Contract Number: W-2425-QM-650
U.S.A. Reg. Numbers: 20298626 to 20364962
and
Contract Number: W-303-ORD-2529
U.S.A. Reg. Numbers: 20443317 to 20458966

This manual is also written in Russian for Lend Lease
vehicles.
There is also a supplement section for the MT-TUG 3/4 Ton,
6x6 Truck, Contract No. W-303-ORD-4623.
The SCR-510 Radio Set was the primary small unit communications system used during World War Two. This unit could be
mounted in a variety of different vehicles. This system was used for communication over a range of approximately 5 miles. The
BC-620 Radio is a crystal controlled radio that operates in the 20.0 - 27.9 Megacycle range (or Megahertz/MHz today).

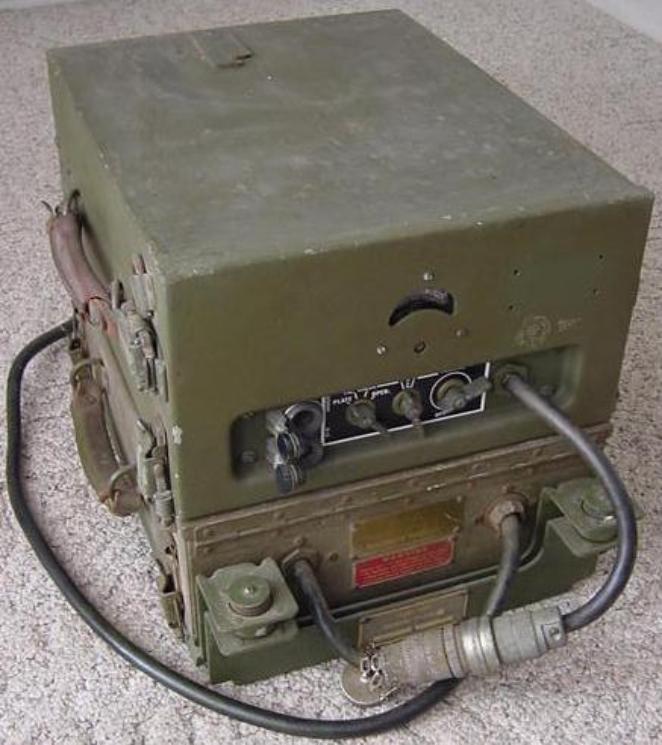

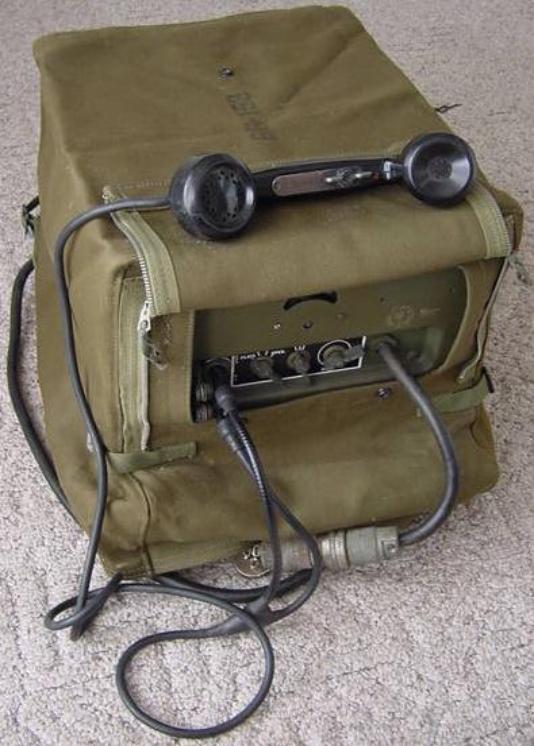

SCR-510 Radio Set, above left and right photo.
The radio set shown to the left has the BG-153 Cover mounted over the radio with the T-15 handset attached.
The photo on the right shows the BC-620 Radio Transceiver with PE-117 Power Supply mounted on the FT-250-C Radio Mount.
FT-419 and FT-420 bracket for the FT-250-C Radio Mount, FT-429 reinforcing plate is for the MP-50 Mast Bracket, TM11-605
manual, above left photo.
This manual is marked to the vehicle it was originally issued to - "HQ-336". The manual is dated 15 November 1943.

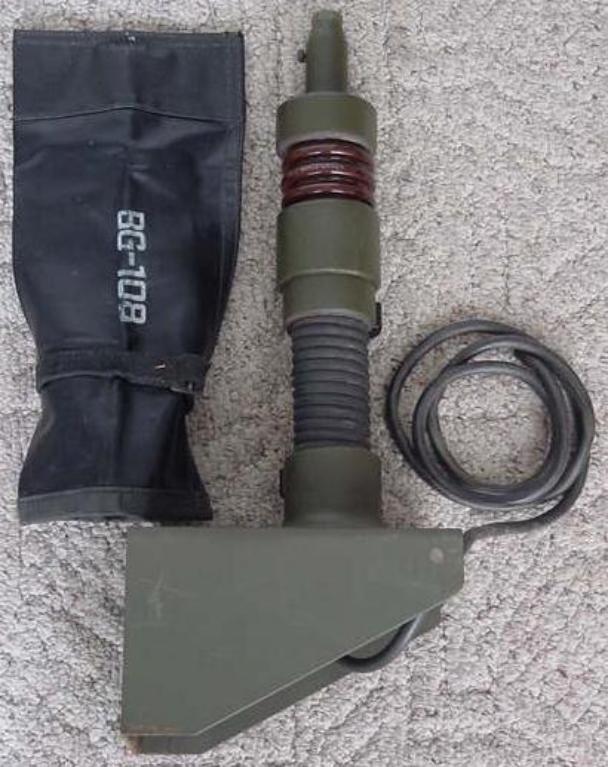

MP-48-A Mast Base attached to the MP-50 Mast Bracket, above right photo.
The black bag is the BG-108 Mast Base Bag which was used to protect the MP-48 Mast Base when not in use.

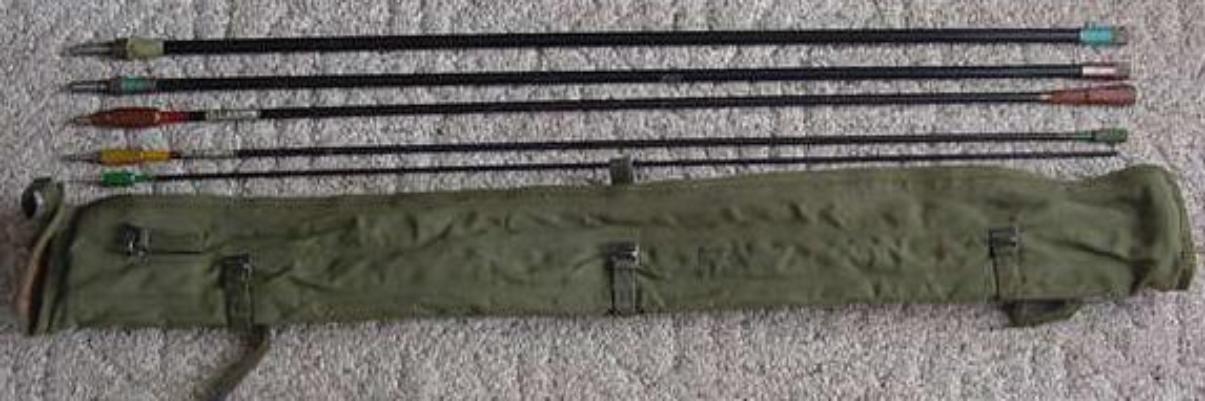

BG-56-A Mast Bag with the following mast sections: MS-53 (grey tipped), MS-52 (blue tipped), MS-51 (red tipped), MS-50
(yellow tipped) and MS-49 (green tipped), above photo.
CIPHER MACHINE

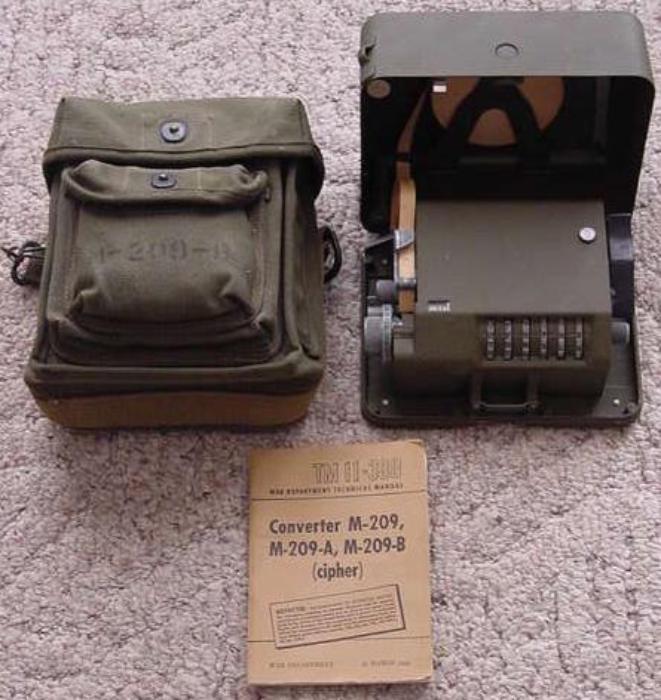

M-209 Cipher Machine, above photo.
The M-209, originally titled "Converter", was one of the first U.S. Military cryptographic or "code" machines. The M-209-B,
shown above, is complete with the canvas carry case and manual. The M-209 was the U.S. version of the German "Enigma"
cipher machine. It used a simple, but very hard to break, wheel system to change one letter to another. Once the conversion
was completed, the radio operator would "tap" the message out via Morse code or by plain speech. The recipient would then
set the same code into their M-209 and retrieve the message. The U.S. Signal Corps used a large amount of cipher equipment
during World War Two, but very few survive today.

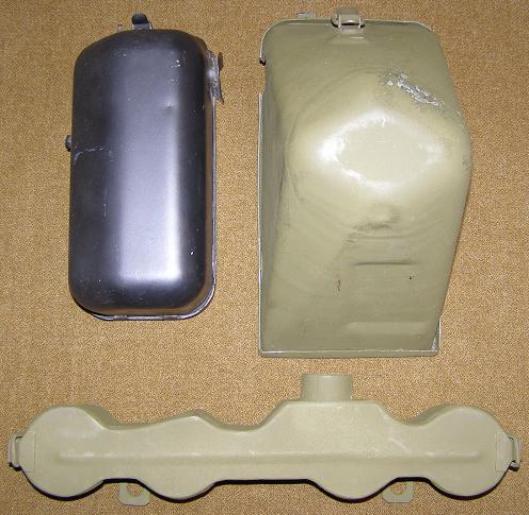

Engine Radio Suppression Boxes, left photo.
These boxes were mounted over the Coil, Distributer and all four Spark Plugs. These boxes added additional radio
suppression for vehicles with radio systems. These boxes were added at the depot level when radio systems were installed,
and not in the factory. This system is believed to have been implemented during the middle of 1943.

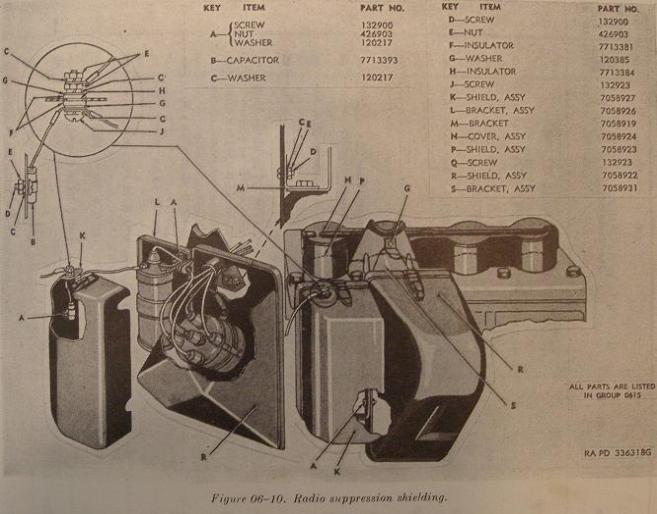

Radio Suppression Shielding diagram from ORD-9 SNL G-503 Manual, right photo.

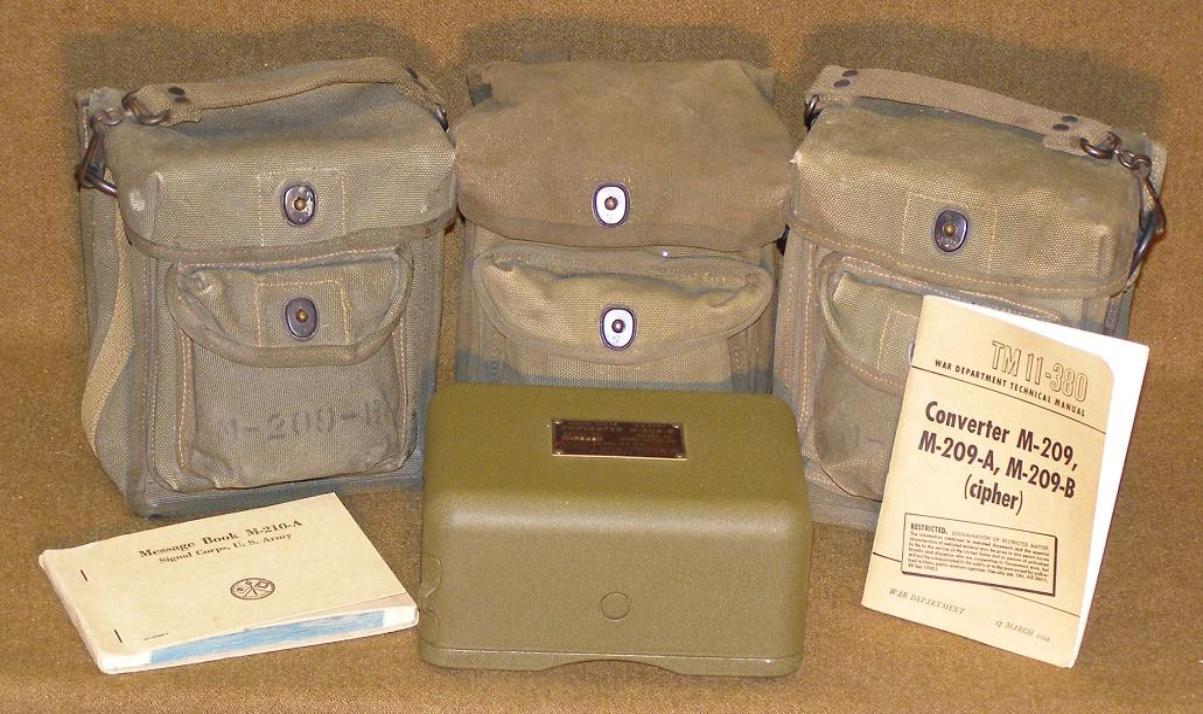

M-209 Cipher Machine, above photo.

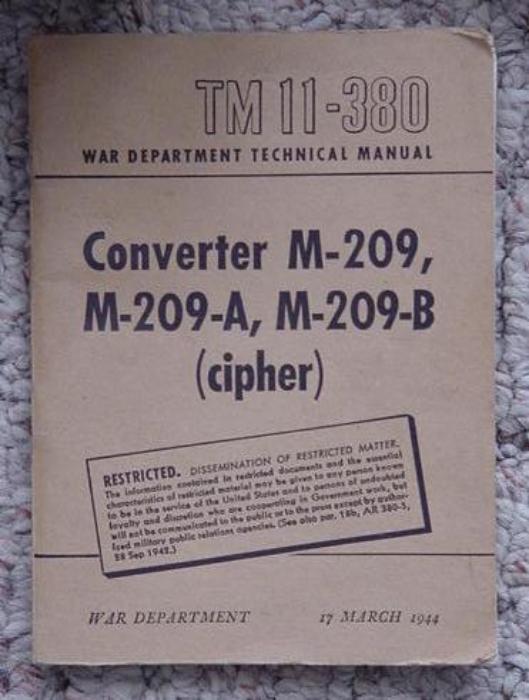

Several M-209 Cipher items in the QuestMasters collection: 2 variations of the M-209-B Carry Case, 1 M-209 Carry Case,
M-210-A Message Book, M-209-B Cipher Machine and TM 11-380 Manual for the Converter M-209, M-209-A and M-209-B dated
17 March 1944.

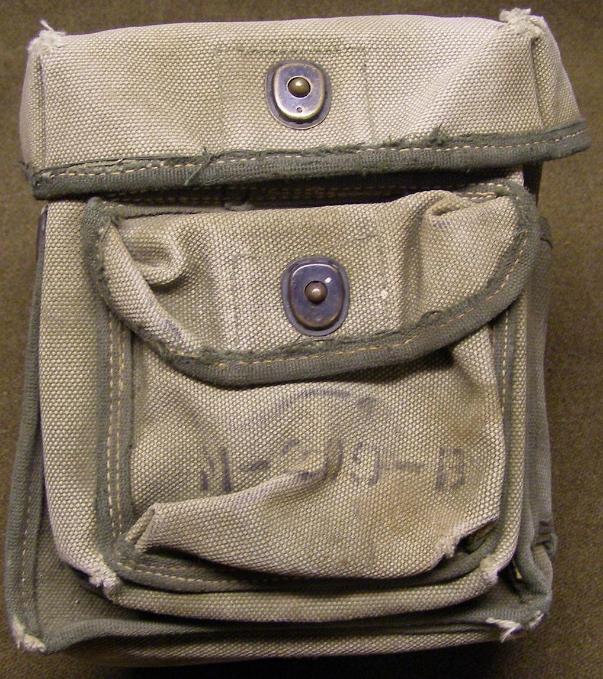

M-209 Cipher Machine Carry and Storage Bags, above photos.

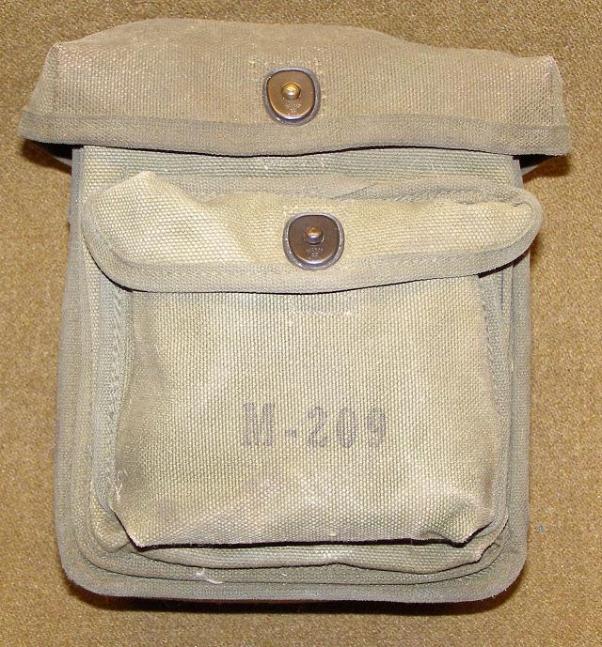

The bag pictured on the left is marked for the M-209 Cipher Machine and is constructed from olive green canvas. The front is
marked M-209 in black ink.
The bag pictured on the right is for the M-209-B Cipher Machine and is constructed from olive green canvas with a khaki
support webbing along the side. This bag has very late war style M-209-B stenciled on the front in black.

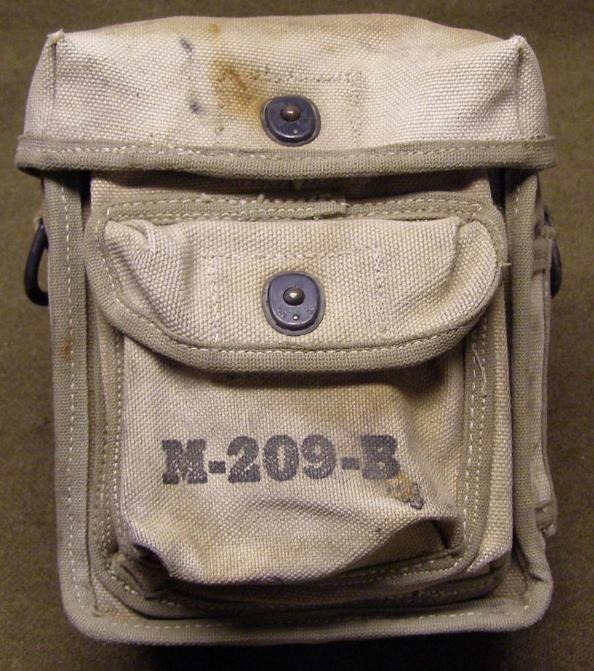

M-209 Cipher Machine Carry and Storage Bags, above photos.

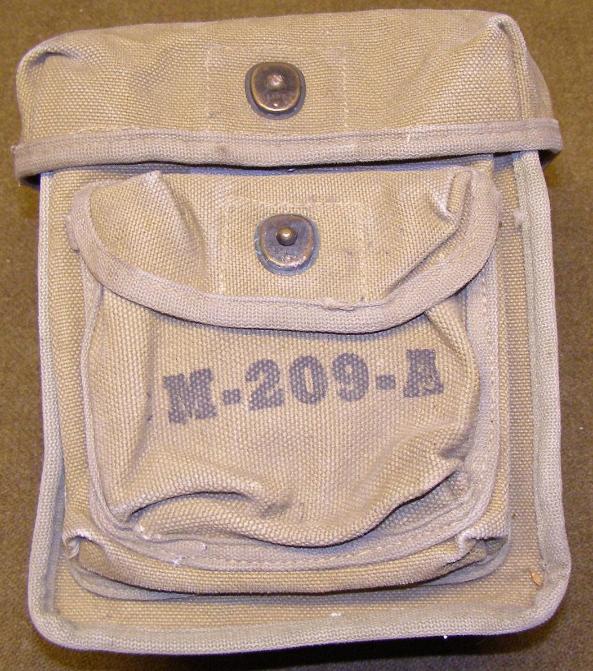

The bag pictured on the left is marked for the M-209-A Cipher Machine and is constructed from khaki canvas with olive green
canvas edging. The front is marked M-209-A in black ink. The top of the bag is marked "MSG. CENT.".
The bag pictured on the right is for the M-209-B Cipher Machine and is constructed from khaki canvas with olive green
canvas edging. The front is marked M-209-B in black ink.
