| United States Navy North American SNJ-5B Advanced Trainer Navy BuNo: SNJ-5B 84947 |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |

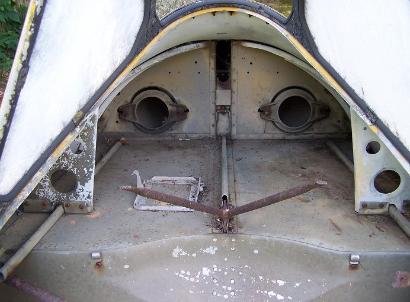

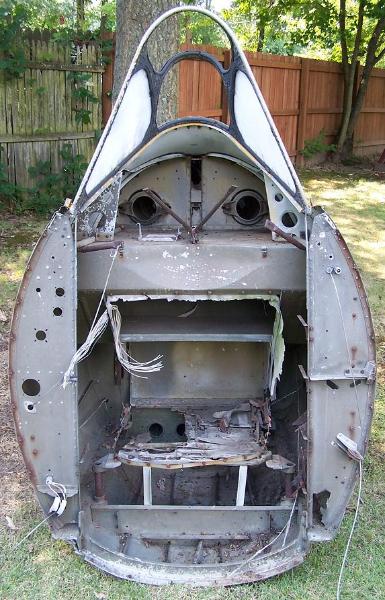

| Inside view of the SNJ-5B tail assembly, left and above photo. When the SNJ was used as a gunnery trainer the rear cockpit window assembly would be removed to mount a rear firing .30 Caliber AN-M2 Machine Gun. |

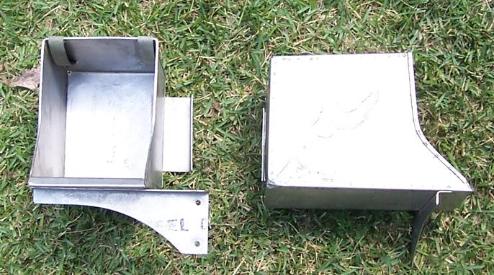

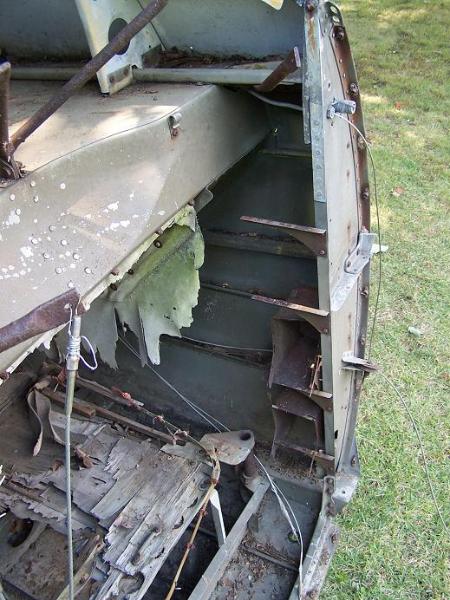

| SNJ-5B port side tail assembly, left photo. The port side of the SNJ held four fixed .30 Caliber ammunition boxes and one fixed ammunition box on the starboard side. Two mild steel boxes and two box brackets remain mounted in the tail of SNJ-5B 84947. Each box could hold 100 rounds of ammunition. Stainless steel .30 Caliber Ammunition Boxes, above photo. These boxes will be used in the restoration of SNJ-5B 84947. |
